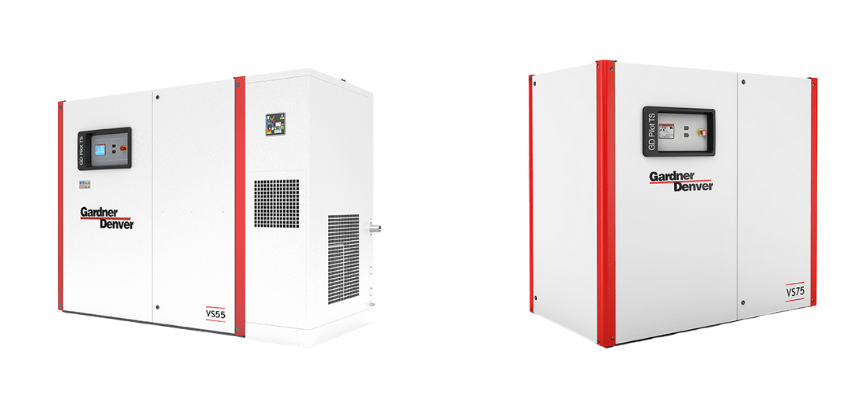

ESM 30-132
GARDNER DENVER VARIABLE SPEED SCREW COMPRESSORS
The Gardner Denver VS series offers a category-leading solution for varying industrial air demands in the 30 kW to 132 kW power range. VSD technology precisely matches individual air requirements, dramatically reducing annual operating costs.
Energy Savings and Innovative Technology
Energy Savings: VS technology can achieve up to 35% energy savings (at 70% load) compared to fixed-speed compressors. The wide control range minimizes idle cycles.
Innovative Oil Valve: The innovative oil control valve eliminates condensate formation, preventing corrosion, extending oil life, and improving efficiency by up to 5% in VS models.
Heat Recovery: Significant cost and energy savings can be achieved with the optionally available integrated heat recovery system.
Remote Monitoring and Premium Protection
GD Pilot TS Control: The innovative touchscreen control system is extremely user-friendly and continuously monitors operating parameters. It also supports the display of trend graphs.
iConn Remote Monitoring: The iConn inside feature is standard equipment. This proactive monitoring service enables predictive maintenance, optimizes energy efficiency, and reduces downtime.
Warranty: The air end is covered by the free Protect 10 extended warranty, which provides 44,000 hours or 10 years of protection.
Pipe Connections: Solid pipe connections with Viton Victaulic couplings guarantee leak-free operation.
General Technical Data (ESM Fixed Speed)
Motor Power: 30 kW to 132 kW
Nominal Pressure Range: 5 bar to 13 bar
Free Air Delivery Range (FAD Min-Max): 1.33 – 24.76 m³/min (Depending on model and pressure)
Noise Level (at 70% load): 66 dB(A) to 74 dB(A)
