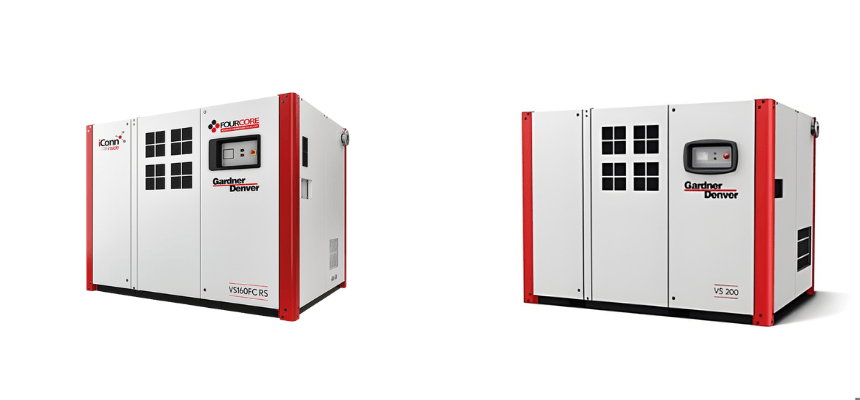

VS 160-290
GARDNER DENVER VARIABLE SPEED SCREW COMPRESSORS
The Gardner Denver VS series offers an ultra-efficient solution for heavy industrial, variable air demand applications in the power range from 160 kW to 290 kW. Variable Speed (VSD) technology ensures the compressor produces the required air volume, significantly reducing annual operating costs.
Guaranteed Performance and Advanced Cooling
Premium Airend: The high-performance compression element operates at low speed, reducing energy costs. The integrated oil filter and oil control valve reduce external hoses.
Advanced Cooling: Staggered aftercoolers are cooled by separate radial fans. This solution ensures optimal oil temperature and the lowest air discharge temperature, extending component life.
Filtration System: Two-stage filtration ensures air quality. The oversized air/oil separator filter guarantees excellent separation.
Intelligence, Warranty and Maintenance Solutions
Control: The GD Pilot TS innovative touchscreen control system continuously monitors operating parameters.
Remote Monitoring: The iConn Inside function is standard equipment. This proactive monitoring service provides real-time system insights, helping to maximize energy efficiency.
Warranty: The airend is covered by the complimentary Protect 10 extended warranty, for up to 44,000 hours or 10 years.
Leak-Free Design: Solid pipe connections with Viton victaulic couplings guarantee leak-free operation.
General Technical Specifications (VS 160 – 290 kW)
Motor Power: 160 kW to 250 kW
Rated Pressure Range: 5 bar to 13 bar
Air Delivery Range (FAD Min-Max): 5.83 – 47.02 m³/min
Noise Level (at 70% load): 75 dB(A) to 79 dB(A)
