VS 23-29

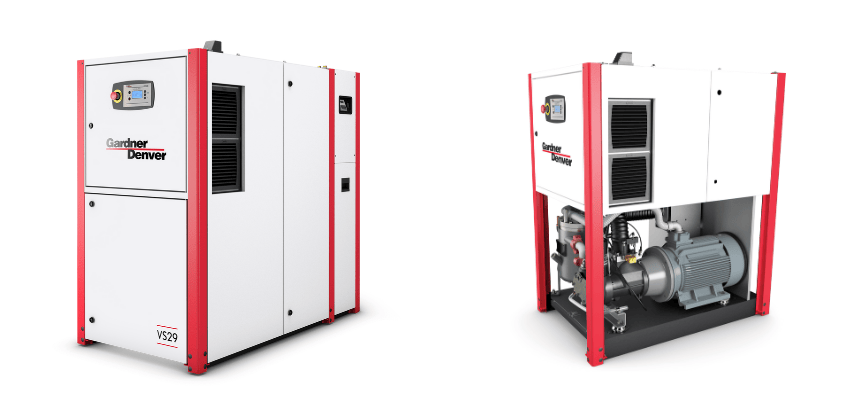

GARDNER DENVER VARIABLE SPEED SCREW COMPRESSORS
This range of the Gardner Denver VS series offers an optimal solution for fluctuating air demands in the 22 kW to 30 kW power range. Variable Speed (VSD) technology ensures that the compressor produces only the required amount of air, drastically reducing annual operating costs.
Energy Savings and Intelligent Performance
Energy Savings: VS technology can achieve up to 35% energy savings (at 70% load). This is ensured by the wide control range and the Power Drive System.
Premium Air End: In-house manufactured premium efficiency air end. Innovative, fault-free shaft seal, integrated oil filter, and oil control valve reduce external hoses.
Control: The GD Pilot SE control system ensures reliable operation and easy handling.
Service: The irrigated pipe connections (with Viton Victaulic couplings) increase reliability and are easy to maintain.
Remote Monitoring and Guaranteed Lifespan
iConn Remote Monitoring: With the iConn inside function, compressors (VS23-29) can be optionally monitored remotely. This service aids in predictive maintenance and performance optimization.
Warranty: The air end is covered by the free Protect 10 extended warranty, which provides 44,000 hours or 10 years of protection.
General Technical Data (VS Variable Speed)
Motor Power: 22 kW to 30 kW
Nominal Pressure Range: 5 bar to 13 bar
Free Air Delivery Range (FAD Min-Max): 1.03 – 5.41 m³/min (Between Minimum and Maximum values)
Noise Level (at 70% load): 68 dB(A) to 69 dB(A)
